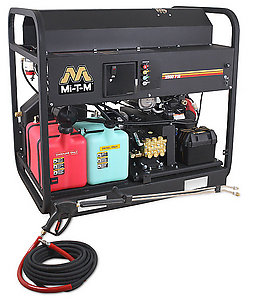

Pump:
- Triplex piston pump with ceramic plungers
Frame:
- Heavy-duty powder coated steel square tube skid frame
Components:
- Horizontal schedule 80 pipe coil
- 2900-watt generator for efficient power to the burner and controls
- No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous:
- Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes:
- Quick connect nozzles - 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch steel wire-braided high pressure hose
- Professional-grade insulated trigger gun with safety lock-off
- Triplex piston pump with ceramic plungers
Frame:
- Heavy-duty powder coated steel square tube skid frame
Components:
- Horizontal schedule 80 pipe coil
- 2900-watt generator for efficient power to the burner and controls
- No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous:
- Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes:
- Quick connect nozzles - 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch steel wire-braided high pressure hose
- Professional-grade insulated trigger gun with safety lock-off
| MODEL NUMBER | HVS-3005-0V6G | HVS-3505-1H6G | HVS-4005-0B7G |
|---|---|---|---|
| PSI | 3000 | 3500 | 4000 |
| GPM | 4.8 | 4.7 | 4.5 |
| HORSEPOWER / DISPLACEMENT / ENGINE | 480cc Vanguard OHV Gasoline, electric start - battery not included | Honda GX630 OHV Gasoline, electric start - battery not included | 16.8 HP Kubota Z602 OHV Diesel, electric start - battery not included |
| PUMP | General | ||
| Mi-T-M NUMBER | 3-0202 | 3-0262 | |
| UNLOADER | Factory preset | ||
| GAS TANK CAPACITY | 10.0 gallons | ||
| BURNER FUEL TANK CAP. | 10.0 gallons | ||
| BURNER FUEL CONS. | 3.37 gph | ||
| BTU PER HOUR | 471,800 | ||
| LANCE | Adjustable, dual | ||
| DIM. (LxWxH) | 50x34x46in. | 56.5x31x46in. | |
| SHIP WT. | 816 lb. | 854 lb. | 940 lb. |
| NET WT. | 710 lb. | 750 lb. | 836 lb. |
